500m farm perimeter alarm laser fence security system

FOB Reference Price:Get Latest Price
US $1-2 / Pairs | 1 Pair/Pairs alarm laser (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 11 - 50 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 2
  • Trademark: 1
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 51% - 60%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
fetnlaser
Model Number:
XD-A
Usage:
alarm laser
Model:
XD-A50/100/200/300/500
Laser wave length:
650nm, 808nm, 980nm
Alert level:
Single-layer alert
Supply Ability
Supply Ability:
1000 Pair/Pairs per Month farm perimeter alarm
Packaging & Delivery
Packaging Details
Carton package
laser fence security system
Port
any port in China
Lead Time :
3 days

500m farm perimeter alarm laser fence security system



         XD-A series laser intrusion detector adopts single-layer bijection structure, with a single beam as

 the alert line,and a pair of detectors as the alert unit, and is capable of continuous laying out and linking other equipment such as lighting device, alarming device, camera, etc. through alarm host.



Item

Technical indexes

Model

XD-A50/100/200/300/500

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

Single-layer alert

Alarm mode

Beam blocking alarm

Working voltage

DC12V±10% or AC220V

Working current:

90mA when transmitting 60mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A,DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A,DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle: <3′ Receiving angle: >10°

Optical axis adjustment angle

Horizontal ±30°   Vertical ±30° (range adjustable.)

Product dimension

60mm (L) × 80mm (W) × 245mm (H)

Chassis dimension

110mm (L) × 130mm (W) × 2mm (H)

Material

Aluminum alloy

Product weight

2.14KG (transmitting end: 1.14KG, receiving end: 1.0KG)

Dimension of installation hole

4  diameter 10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h

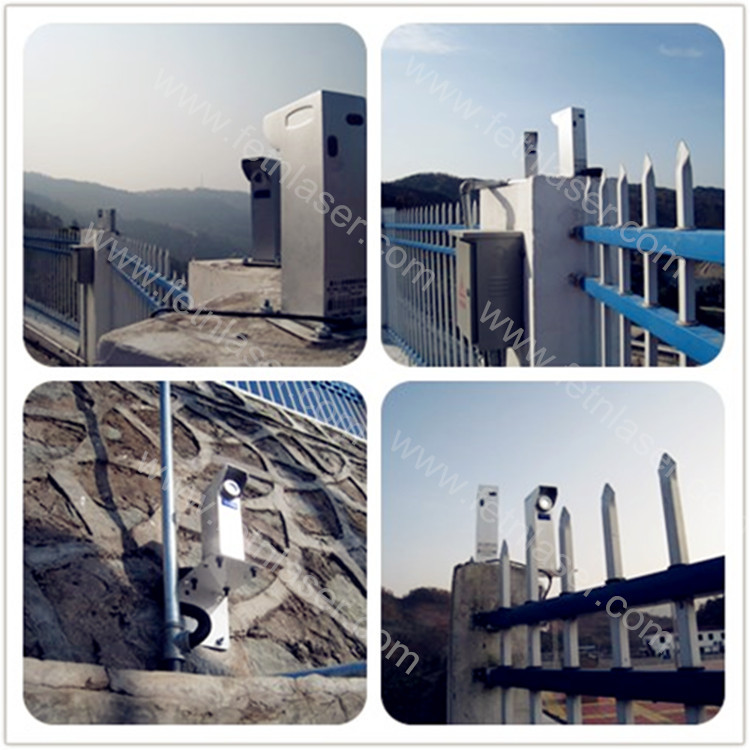

1, The oil depot, Oilfield, Oil and gas pipeline border intrusion prevention

2. Railway track obstruction warning precautions

3. Rail transit, airport runway border protection warning

4. Various important areas of  temporary cordon

5. Highway bridge over-high warning, Road and rail tunnels over-high and  Closed alarm protection
6.The military restricted zones, border intrusion alarm
