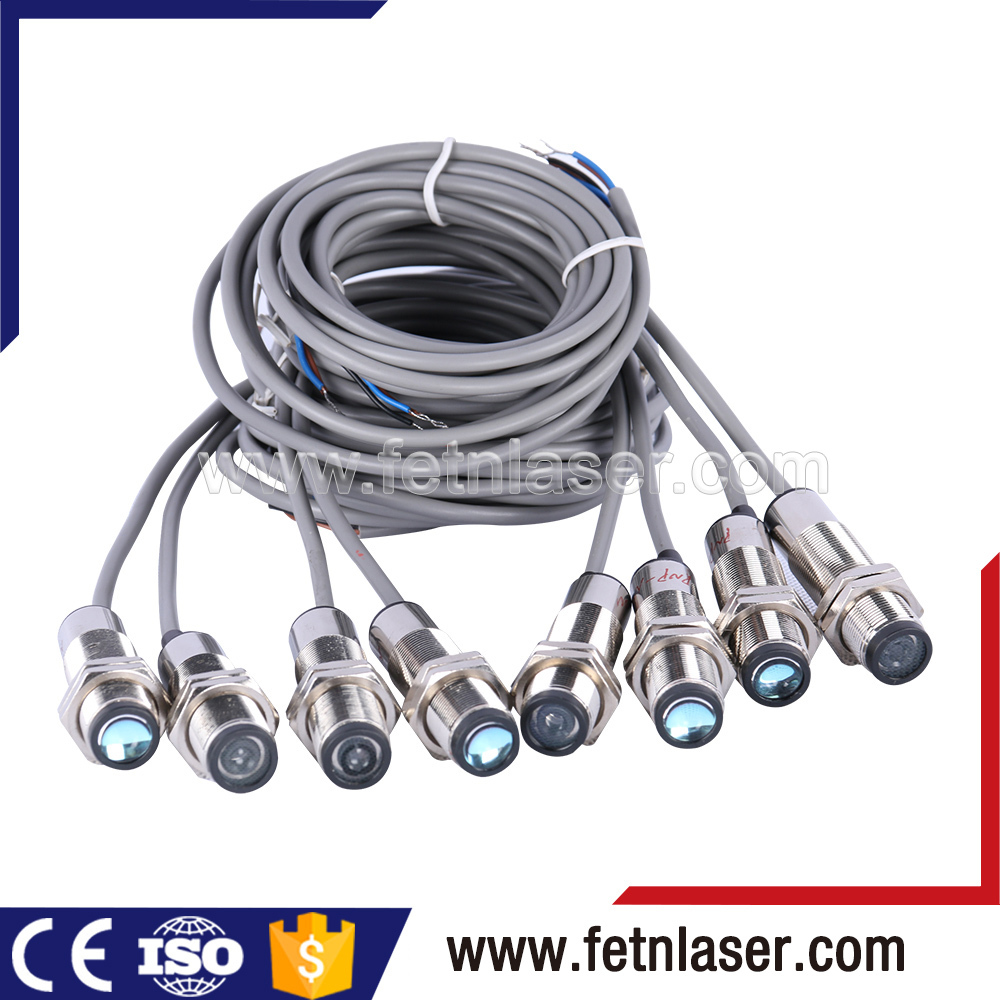

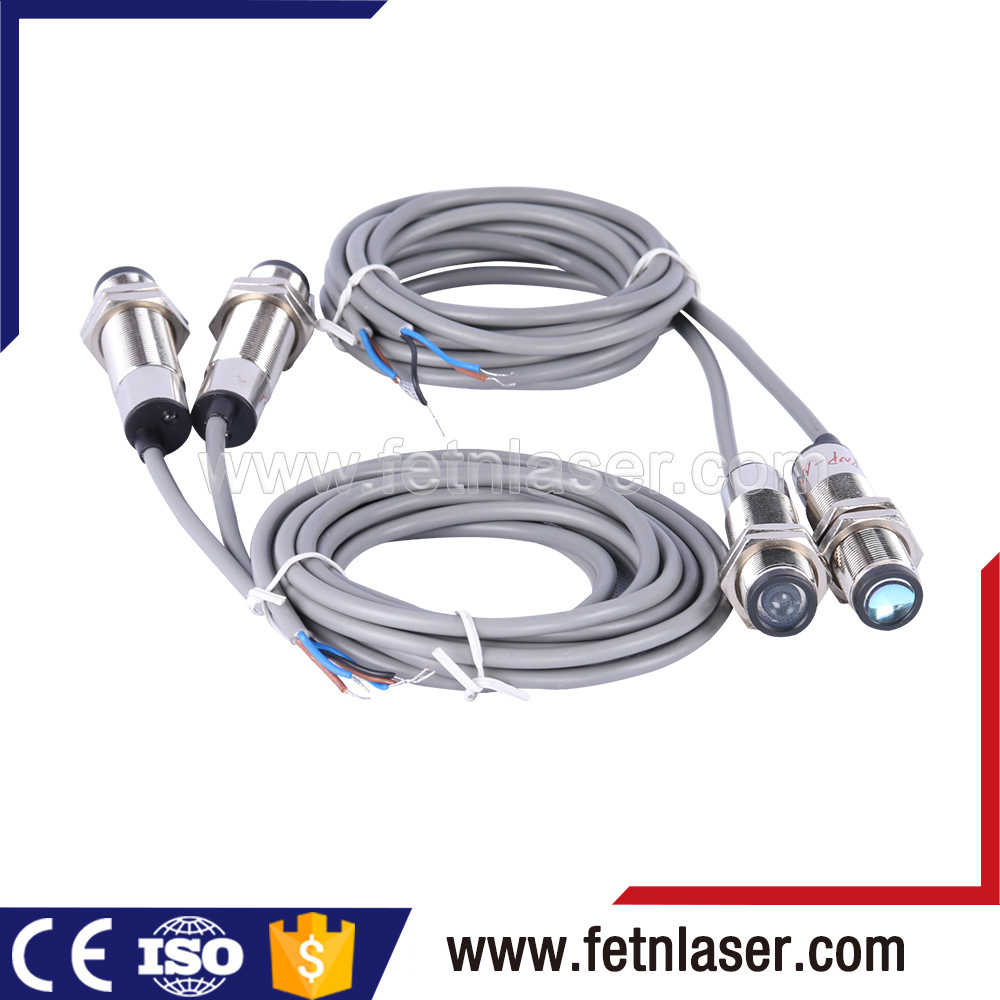

AC-M18 Through-beam and laser photoelectric switch sensor with 20m Sensing distance

FOB Reference Price:Get Latest Price
US $1-2 / Pieces | 1 Piece/Pieces photoelectric switch sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
fetnlaser
Model Number:
AC-A
Usage:
photoelectric proximity switch
Theory:
photoelectric proximity switch
Output:
photoelectric proximity switch
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month photoelectric switch sensor
Packaging & Delivery
Packaging Details
photoelectric switch sensor
Port
any port in china

AC-M18   Through-beam and laser photoelectric switch sensor with 20m Sensing distance

function instruction 1

The length* width* height of the transmitting end and the receiving end of this type of laser photoelectric switch are all 73mm* 52mm* 72mm.



This product adopts wide voltage input design, supporting input of AC/DC10-30V. Besides, due to the unchanged performance of photoelectric switch itself as voltage changes and strong compatibility, it can be widely applied for limiting displacement, location detection, automatic counting, speed measurement, automatic protection, industrial production’s automatic assembly line, microcomputer signal and numerical control device, etc.

 In the fields of various machinery, machine-tool industry, textile, papermaking, tobacco, light industry, food,

chemical industry, mining and metallurgy, etc.

technical parameter 2

Item

Laser bijection photoelectric switch

Product model

AC-A

Working voltage

DC10-30V

Working current:

≤35mA when transmitting, ≤10mA when receiving

Load current

Max: 300mA

Laser wave length

650nm

Bijection distance

0-50m (customization available)

Output mode

NPN normally open (factory default)

Response time

< 5mS

Outgoing line

1.5m (outgoing from trail)

Detection object

Opaque object

Enclosure material

Brass nickel plated

Reverse polarity protection of power supply

Yes

Signal short circuit protection

Yes

Action display

Red LED indicator (at trail)

Environment illuminance

Fluorescent lamp: ≤3000Lx/ sunlight: ≤10000Lx

Insulation resistance

≥ 20MΩ

Beam divergence angle

<

Receiving angle of the receiving end

<±8°

Enclosure dimension

diameter 18mm*65mm

Working environment temperature

-25℃-70℃
