Perimeter laser beam security yard security alarm system XL-A100

FOB Reference Price:Get Latest Price
US $1-2 / Pairs | 1 Pair/Pairs yard security alarm system (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 11 - 50 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 2
  • Trademark: 1
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 51% - 60%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Model Number:
yard security alarm system
Laser wave length:
650nm, 808nm, 980nm
Alert level:
Single-layer alert
yard security alarm system
Supply Ability
Supply Ability:
1000 Pair/Pairs per Month yard security alarm system
Packaging & Delivery
Packaging Details
carton package
any port in China
Lead Time :
Shipped in 3 days after payment

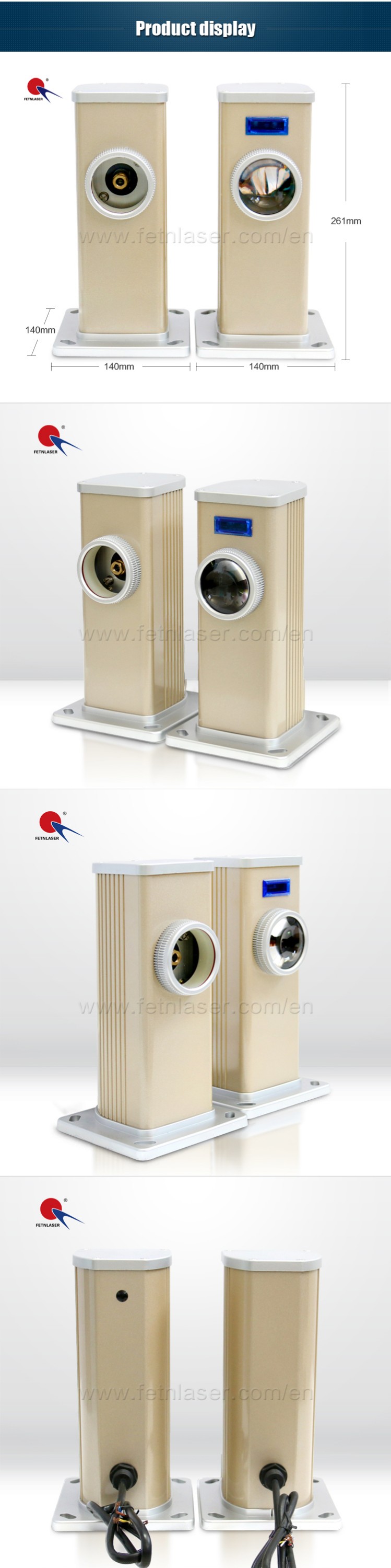

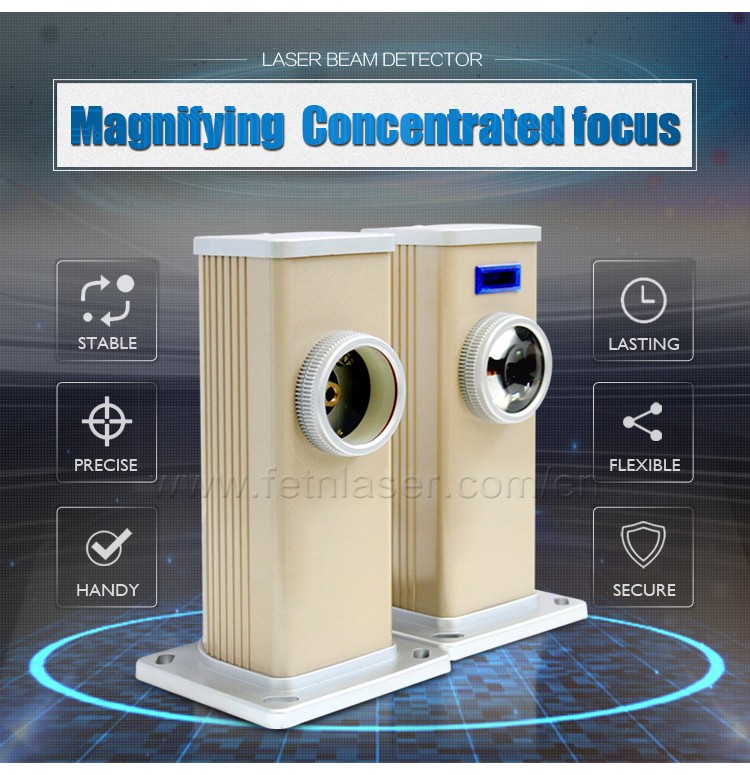

Perimeter laser beam security yard security alarm system XL-A100



         XL-A series laser motion detector adopts single-layer bijection structure, with a single beam as

 the alert line,and a pair of detectors as the alert unit, and is capable of continuous laying out and linking

other equipment such as lighting device, alarming device, camera, etc. through alarm host.

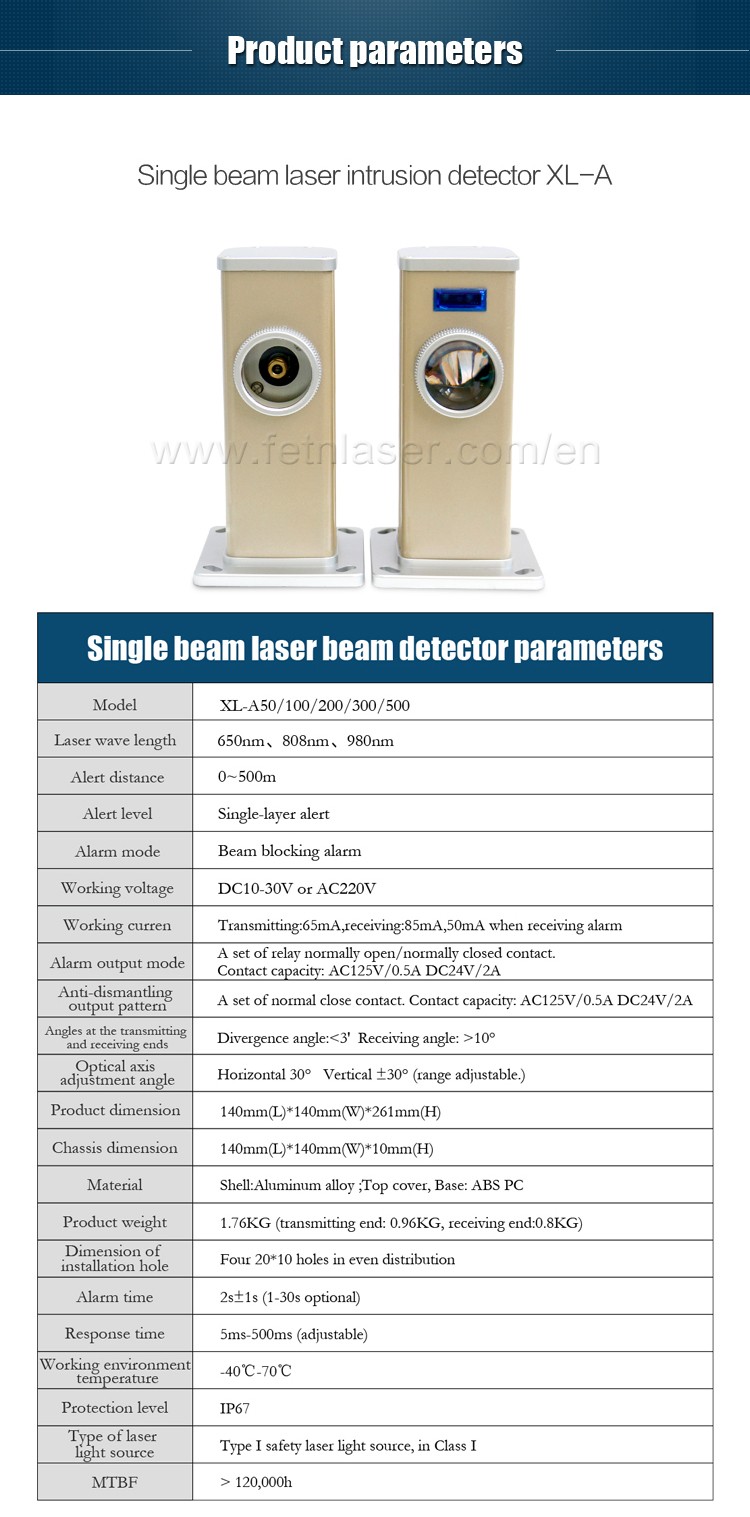

Technical indexes

Alert distance

0- 200m

Alert level

Single-layer alert

Alarm mode

Beam blocking alarm

Working voltage


Working current:

Transmitting:65mA ,receiving:85mA,50mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle:<3′  Receiving angle: >10°

Optical axis adjustment angle

Horizontal 30°   Vertical ±30° (range adjustable.)

Product dimension

140mm (L) * 140mm (W) * 261mm (H)

Chassis dimension

140mm (L) *140mm (W) *10mm (H)


Shell:Aluminum alloy ;Top cover, Base: ABS PC

Product weight

1.76KG (transmitting end: 0.96KG, receiving end:0.8KG)

Dimension of installation hole

Four 20*10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature


Protection level


Type of laser light source

Type I safety laser light source, in Class I


> 120,000h
