M18 laser sensor laser switch photoelectric proximity sensor

FOB Reference Price:Get Latest Price
US $10-200 / Pieces | 1 Piece/Pieces laser sensor laser switch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Feitian
Model Number:
AC-M18-A50/100
Usage:
photoelectric detector
Theory:
photoelectric detector
Output:
Switching Transducer
Working voltage:
DC10- 30V
Working current:
≤35mA when transmitting, ≤10mA when receiving
Load current:
Max: 300mA
Laser wave length:
650nm
Bijection distance:
0-50m (customization available)
Output mode:
NPN normally open (factory default)
Response time:
< 5mS
Product name:
photoelectric proximity sensor
Action display:
Red LED indicator (on top)
Beam divergence angle:
<6°
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month photoelectric proximity sensor
Packaging & Delivery
Packaging Details
Carton packaging
photoelectric proximity sensor
Port
Any port in China
Lead Time :
10 days after the deposit

M18 laser sensor laser switch photoelectric proximity sensor



photoelectric detector



Wide voltage design, compatibility is stronger, can be applied to all kinds of machinery, machine tool manufacturing, textile, paper making, tobacco, light industry, food, chemical, mining, metallurgical and other industries for limit detection, automatic counting, positioning, speed, automatic protection, industrial automatic production lines and digital signal, digital devices and other applications.



photoelectric sensor



Item

Laser photoelectric switch

Product model

AC-M18-A50

Working voltage

DC10- 30V

Working current:

≤35mA when transmitting, ≤10mA when receiving

Load current

Max: 300mA

Laser wave length

650nm

Bijection distance

0-50m (customization available)

Output mode

NPN normally open (factory default)

Response time

< 5mS

Wiring Mode

Internal terminal

Detection object

Opaque object

Enclosure material

Nickel-plated brass

Reverse polarity protection of power supply

Yes

Signal short circuit protection

Yes

Action display

Red LED indicator (on top)

Environment illuminance

Fluorescent lamp: ≤3000Lx/ sunlight: ≤10000Lx

Insulation resistance

≥ 20MΩ

Beam divergence angle

<

Receiving angle of the receiving end

<±8°

Enclosure dimension

18mm*65mm

Working environment temperature

-25℃-70℃

Working environment humidity :

< 90%RH

 photoelectric proximity sensor.jpg

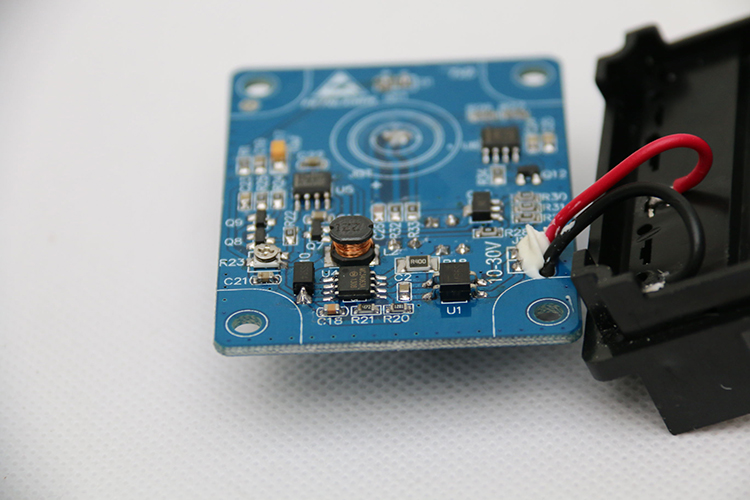

Wide voltage input ,DC10-30V

Power input with reverse polarity protection

Imports chip, stable performance



photoelectric proximity sensor.jpg

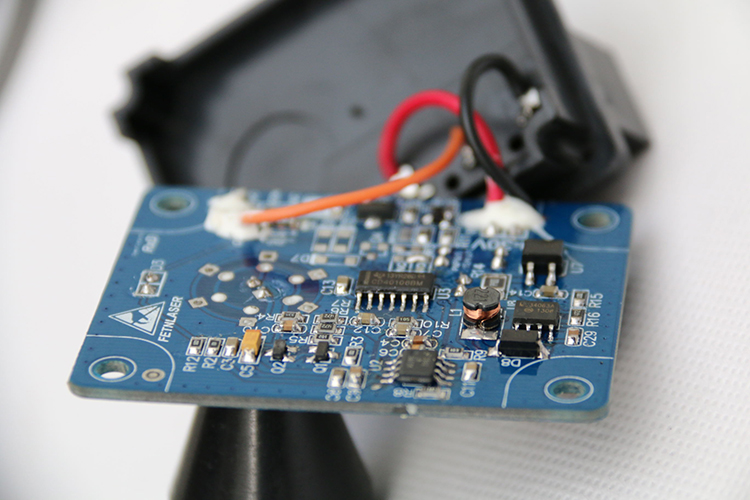

The receiving circuit,By plastic logic chip processing and signal transfer to the selected frequency IC,Therefore strong against external stray interference capability, fast response



photoelectric detector.jpg

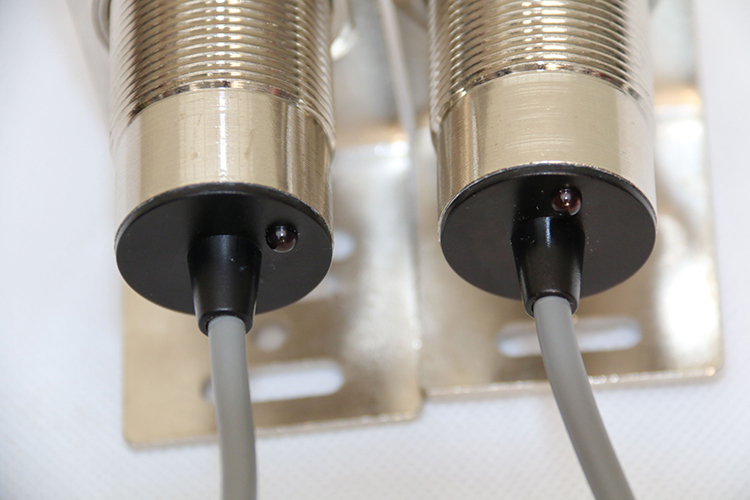

with a red LED light In the tail



.jpg

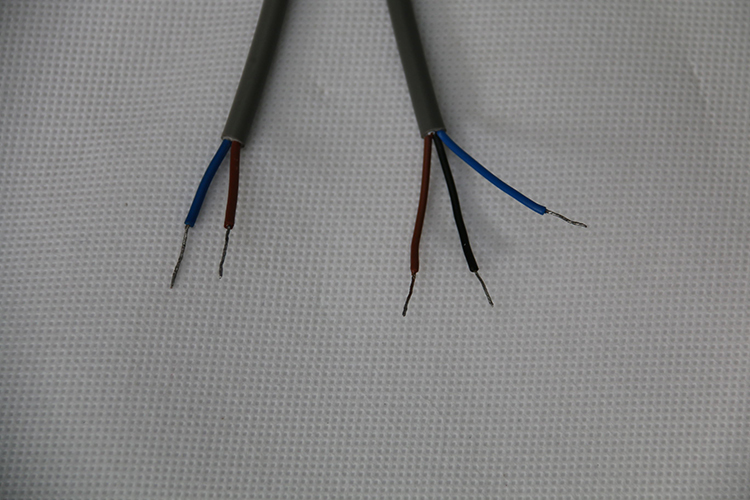

Silicone line, electrical outlet, soft, anti-aging, corrosion-resistant
