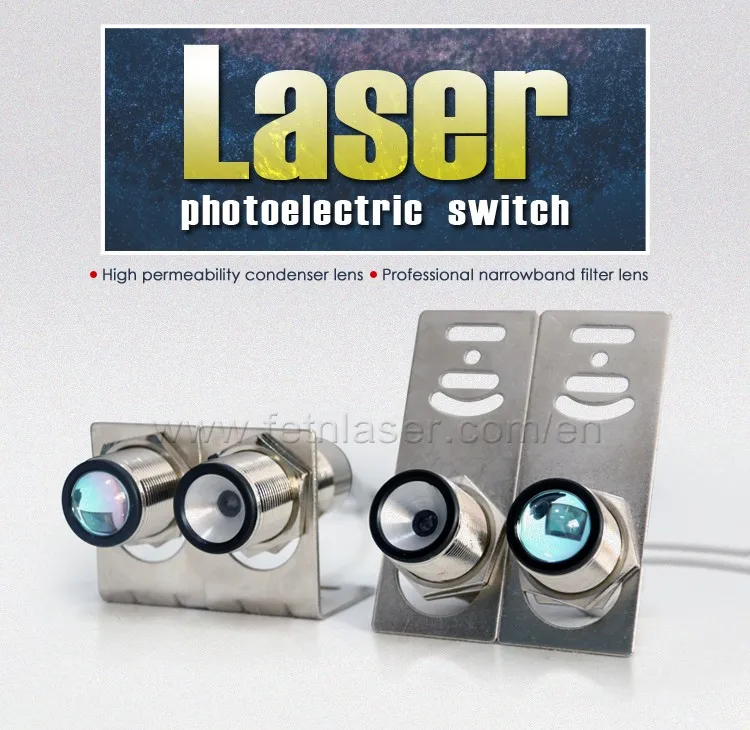

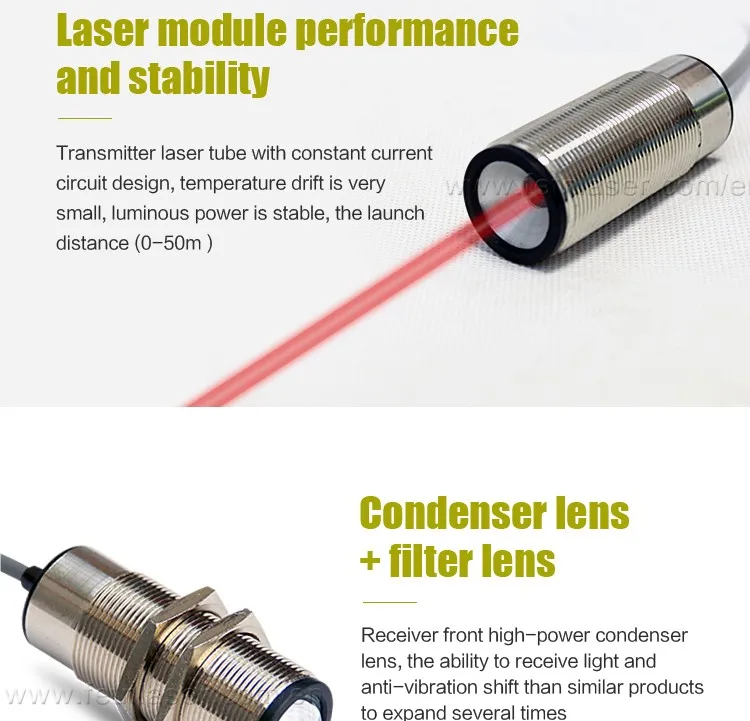

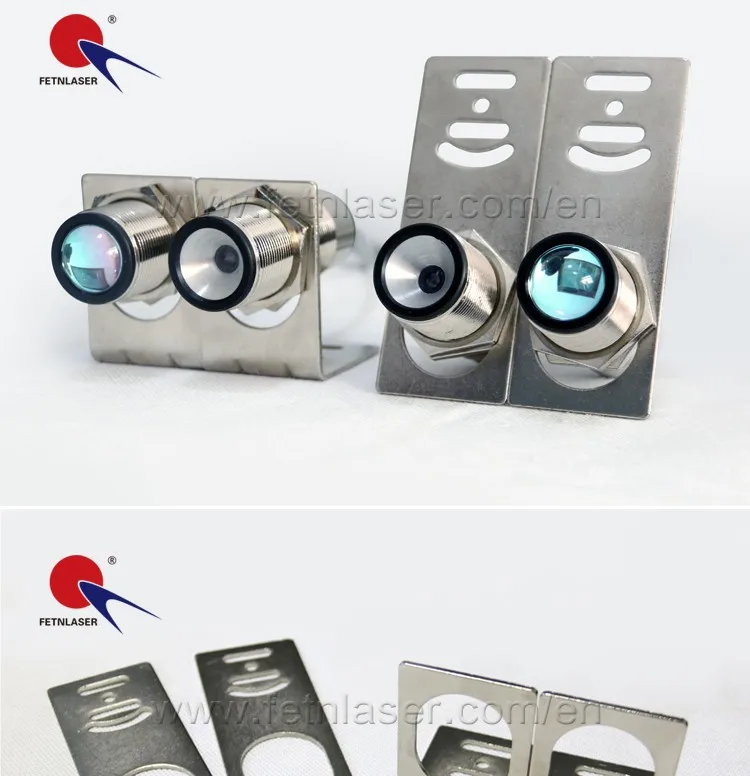

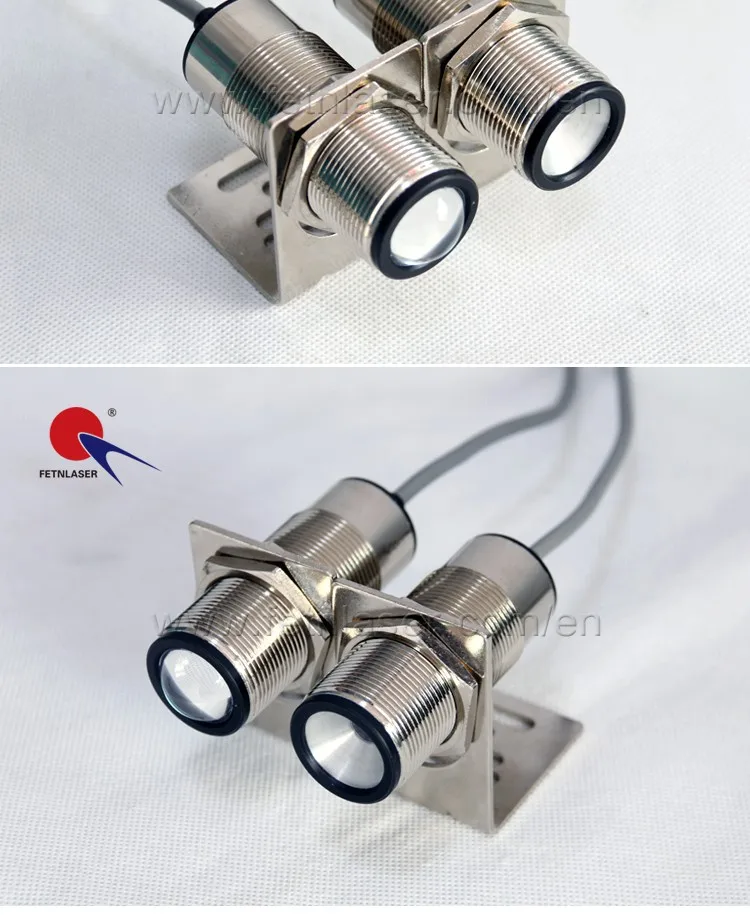

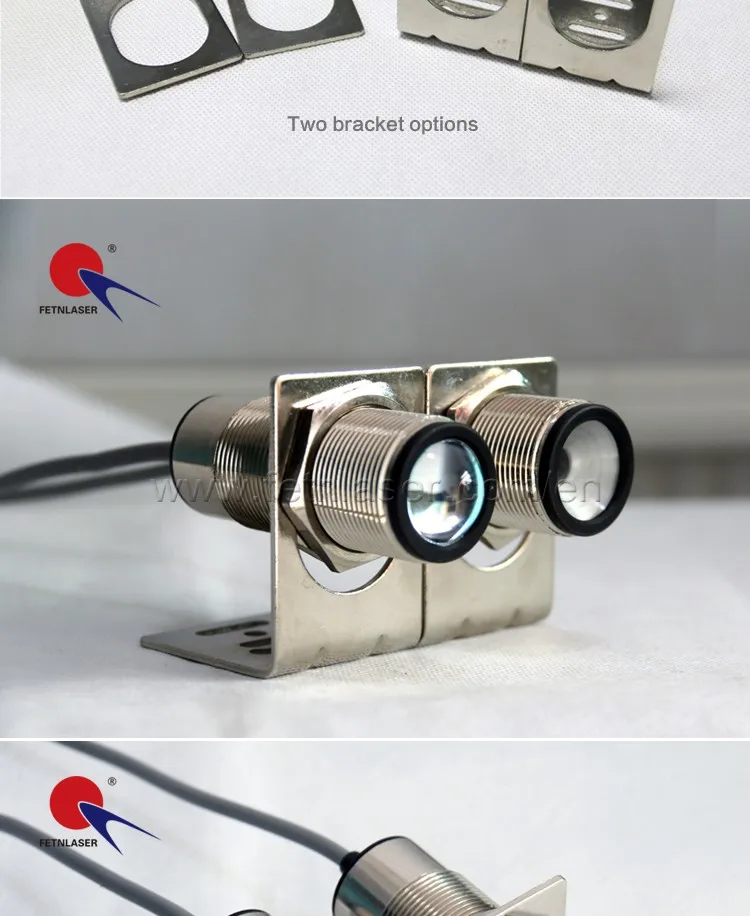

30mm diameter through beam photoelectric sensor laser sensor switch AC-LM30D100

FOB Reference Price:Get Latest Price
US $65-70 / Pieces | 1 Piece/Pieces through beam photoelectric sensor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Feitian
Model Number:
AC-LM30D10
Usage:
through beam photoelectric sensor
Theory:
laser sensor switch
Output:
Switching Transducer
Working voltage:
DC10- 30V
Working current:
≤35mA when transmitting, ≤10mA when receiving
Load current:
Max: 300mA
Laser wave length:
650nm
Bijection distance:
0-50m (customization available)
Output mode:
NPN normally open (factory default)
Response time:
< 5mS
Wiring Mode:
Internal terminal
Action display:
Red LED indicator (on top)
Name:
through beam photoelectric sensor
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month laser sensor switch
Packaging & Delivery
Packaging Details
Carton packaging
through beam photoelectric sensor
Port
Any port in China

30mm diameter through beam photoelectric sensor laser sensor switch AC-LM30D100



photoelectric sensor



Wide voltage design, compatibility is stronger, can be applied to all kinds of machinery, machine tool manufacturing, textile, paper making, tobacco, light industry, food, chemical, mining, metallurgical and other industries for limit detection, automatic counting, positioning, speed, automatic protection, industrial automatic production lines and digital signal, digital devices and other applications.



photoelectric sensor price



Item

Photoelectric beam sensor

Product model

AC-LM30D100

Working voltage

DC10- 30V

Working current:

≤35mA when transmitting, ≤10mA when receiving

Load current

Max: 300mA

Laser wave length

650nm

Bijection distance

0-100m (customization available)

Output mode

NPN normally open (factory default)

Response time

< 5mS

Wiring Mode

Internal terminal

Detection object

Opaque object

Enclosure material

Nickel-plated brass

Reverse polarity protection of power supply

Yes

Signal short circuit protection

Yes

Action display

Red LED indicator (on top)

Environment illuminance

Fluorescent lamp: ≤3000Lx/ sunlight: ≤10000Lx

Insulation resistance

≥ 20MΩ

Beam divergence angle

<

Receiving angle of the receiving end

<±8°

Enclosure dimension

18mm*65mm

Working environment temperature

-25℃-70℃

Working environment humidity :

< 90%RH

 through beam photoelectric sensor.jpg_03.jpg4.jpgthrough beam photoelectric sensor.jpg_06.jpgphotoelectric sensor switch.jpg_09.jpgthrough beam photoelectric sensor.jpg_11.jpgphotoelectric sensor switch.jpgthrough beam photoelectric sensor.jpg
