Outdoor security sensors laser beam fence security system XD-B100

FOB Reference Price:Get Latest Price
US $100-900 / Sets | 1 Set/Sets laser beam fence security system (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 11 - 50 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 2
  • Trademark: 1
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 51% - 60%
  • No. of Employees inTrade Department: 3-5 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Feitian
Model Number:
XD-B100
Usage:
laser beam fence security system
Laser wave length:
650nm, 808nm, 980nm
Alert distance:
0-100m
Alert level:
Double-layer alert
Product name:
laser beam fence security system
Product dimension (L*W*H):
60mm *80mm* 245mm
Product weight:
2.14KG (transmitting end: 1.14KG, receiving end: 1.0KG)
Working environment temperature:
-40℃-70℃
Protection level:
IP67
Type of laser light source:
Type I safety laser light source, in Class I
Certification:
CE&ISO9001
Supply Ability
Supply Ability:
10000 Set/Sets per Month outdoor security sensors
Packaging & Delivery
Packaging Details
Carton packaging
Port
Qingdao or others
Video Description

Outdoor security sensors laser beam fence security system XD-B100





XD-B series beam detector adopts double layer  bijection structure, with double  beam as the alert line,  and a pair of detectors as the alert unit, and is capable of continuous laying

out and linking other equipment such as lighting device, alarming device, camera, etc. through alarm host.

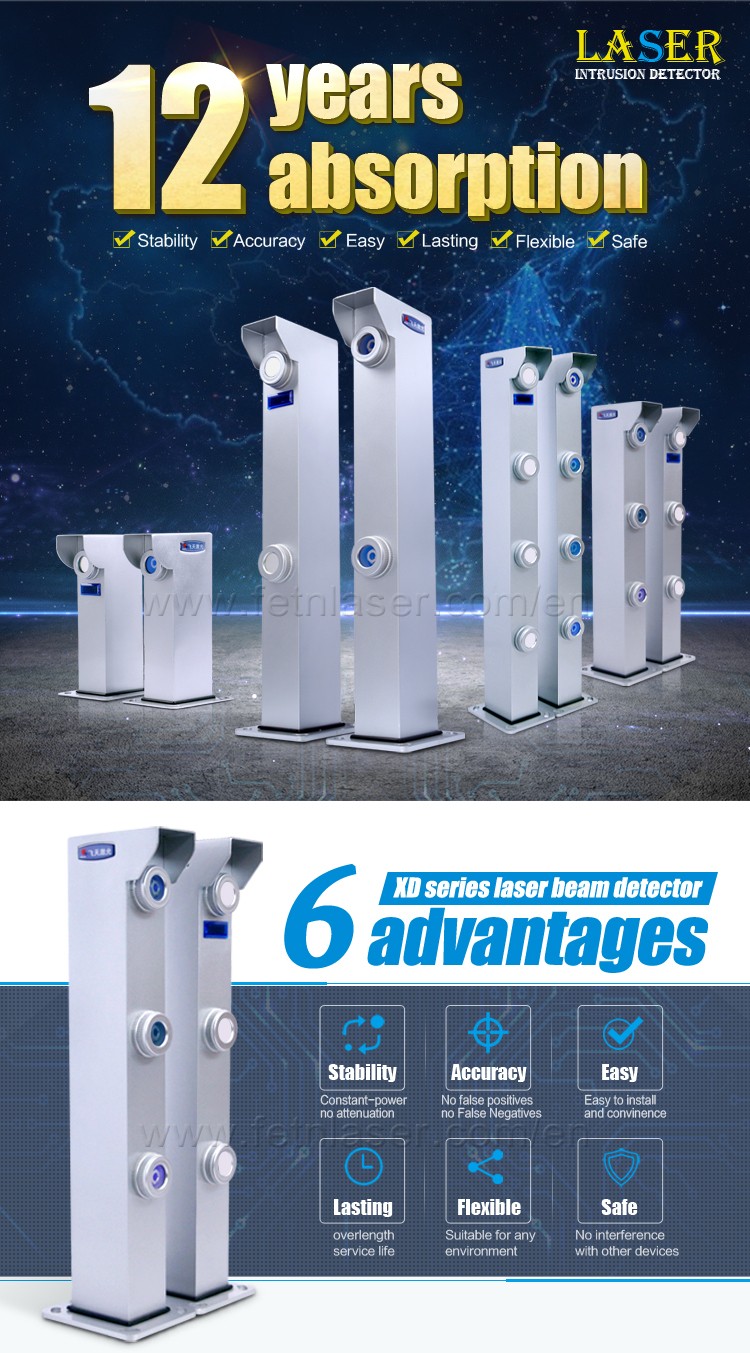

Product advantages:



1.Constant-power no attenuation

2.No false positives,no false negatives

3.Easy to install and convinence

4.Overlength service life

5.Suitable for any environment



6.No interference with other devices

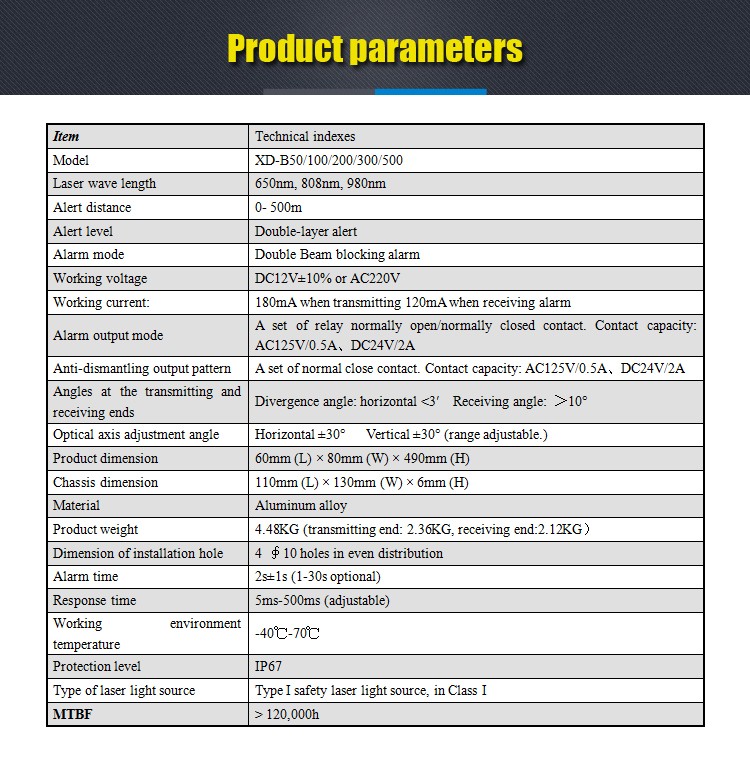

Item

Technical indexes

Model

XD-B50/100/200/300/400/500

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

double-layer alert

Alarm mode

Beam blocking alarm

Working voltage

DC12V±10% or AC220V

Working current:

180mA when transmitting 120mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A,DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A,DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle:<3′  Receiving angle: >10°

Optical axis adjustment angle

Horizontal 30°   Vertical ±30° (range adjustable.)

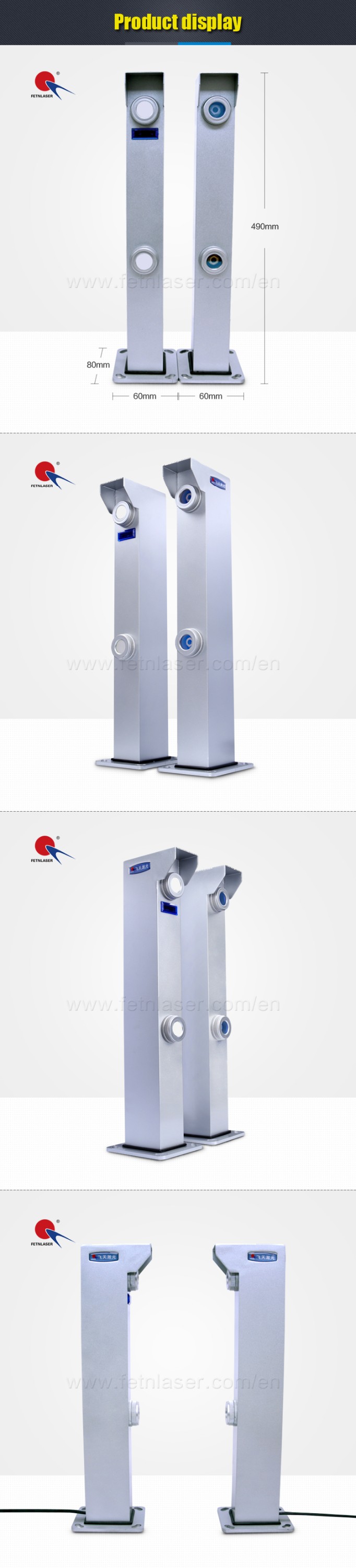

Product dimension

60mm (L) × 80mm (W) × 490mm (H)

Chassis dimension

110mm (L) × 130mm (W) × 2mm (H)

Material

Aluminum alloy

Product weight

4.48KG (transmitting end: 2.36KG, receiving end: 2.12KG)

Dimension of installation hole

diameter 10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h



FAQ

1.Does laser bijection do harm to people?



Laser beam does no harm to people, yet laser generation has influence on people, so it needs to minimize the chance of standing by the laser generator for long time. Do not stare at laser.

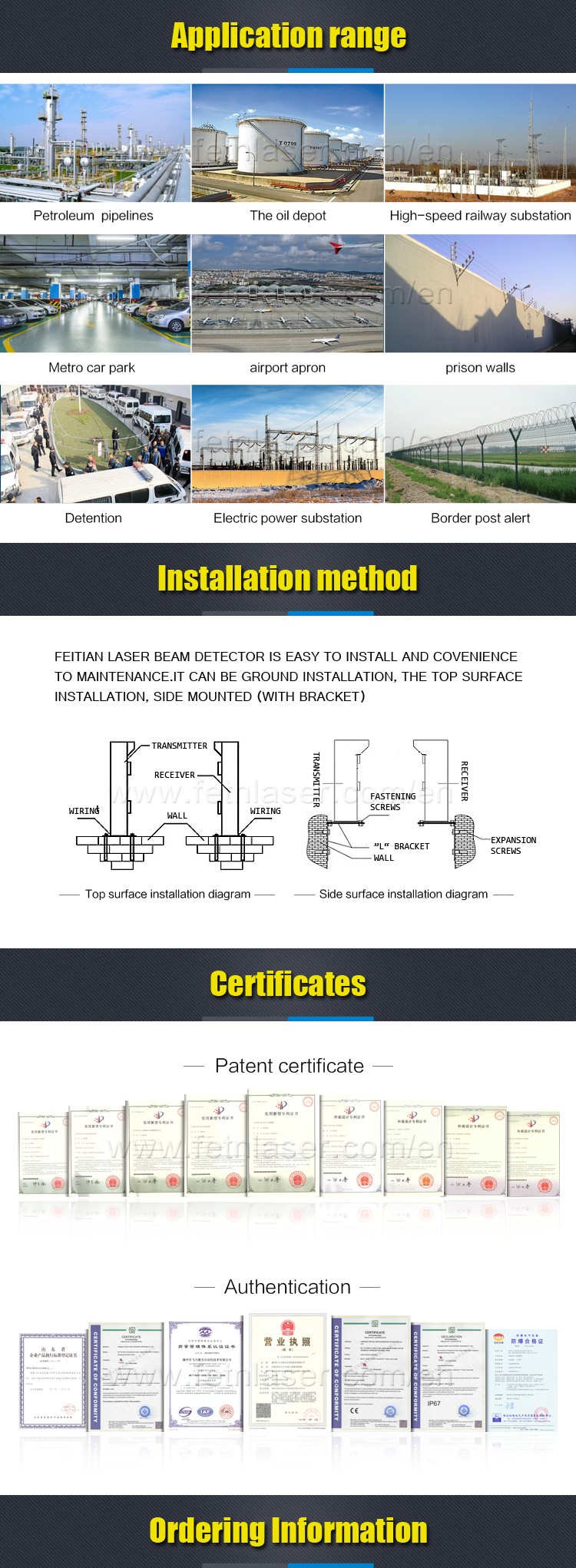

2.Is laser bijection easy to install? What kinds of installation are available?



It is easy in installation, simple in commissioning and convenient in maintenance and can be installed on the ground and the top or side surface of enclosing wall (side mounted support is needed)



3.Do the products have inspection reports? Which certificates do they have?



All our products have inspection reports, multiple patent certificates, explosion proof certificates and ISO9000 certificate.



4.Where are your laser detectors mainly used?



Perimeter alert of railway and transformer substation, perimeter alert of oil depot, oil field and petroleum and natural gas compressing station, early warning and protection system of metro, municipal light rail and airport, over-high early warning and protection system of bridge and tunnel and invisible light alert of military forbidden zone, supervision zone and border defense zone.



5.How long is the warranty of your products? How about your after sale service?



Based on different type, the time of warranty is 1 to 2 years. We have special after-sales department and management system to ensure customer satisfaction.
