Outdoor sensor electronic boundary laser security system XD-B

FOB Reference Price:Get Latest Price
US $100-500 / Pairs | 1 Pair/Pairs electronic boundary laser security system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
FETNLASER
Model Number:
XD-B
Usage:
electronic boundary laser security system
Product name:
outdoor laser sensor
Function:
outdoor laser security system
Certificate:
CE Rohs
Application:
Outdoor use
Warranty:
12 Months
Supply Ability
Supply Ability:
1000 Pair/Pairs per Month outdoor laser sensor
Packaging & Delivery
Packaging Details
carton package
outdoor laser security system
Port
any port in China
Lead Time :
7 days
Video Description

Outdoor sensor electronic boundary laser security system XD-B

Product Description



 XD-B series laser perimeter security systems adopts double -layer bijection structure,with double beam  as the alert line,  and a pair of detectors as the alert unit,  and is capable of continuous laying  out and linking other equipment such as lighting device,  alarming device, camera, etc through alarm host.



Item

Technical indexes

Model

XD-B50/100/200/300/500

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

double-layer alert

Alarm mode

Beam blocking alarm

Working voltage

DC12V±10% or AC220V

Working current:

180mA when transmitting 120mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A,DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A,DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle:<3′  Receiving angle: >10°

Optical axis adjustment angle

Horizontal 30°   Vertical ±30° (range adjustable.)

Product dimension

60mm (L) × 80mm (W) × 490mm (H)

Chassis dimension

110mm (L) × 130mm (W) × 2mm (H)

Material

Aluminum alloy

Product weight

4.48KG (transmitting end: 2.36KG, receiving end: 2.12KG)

Dimension of installation hole

diameter 10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h

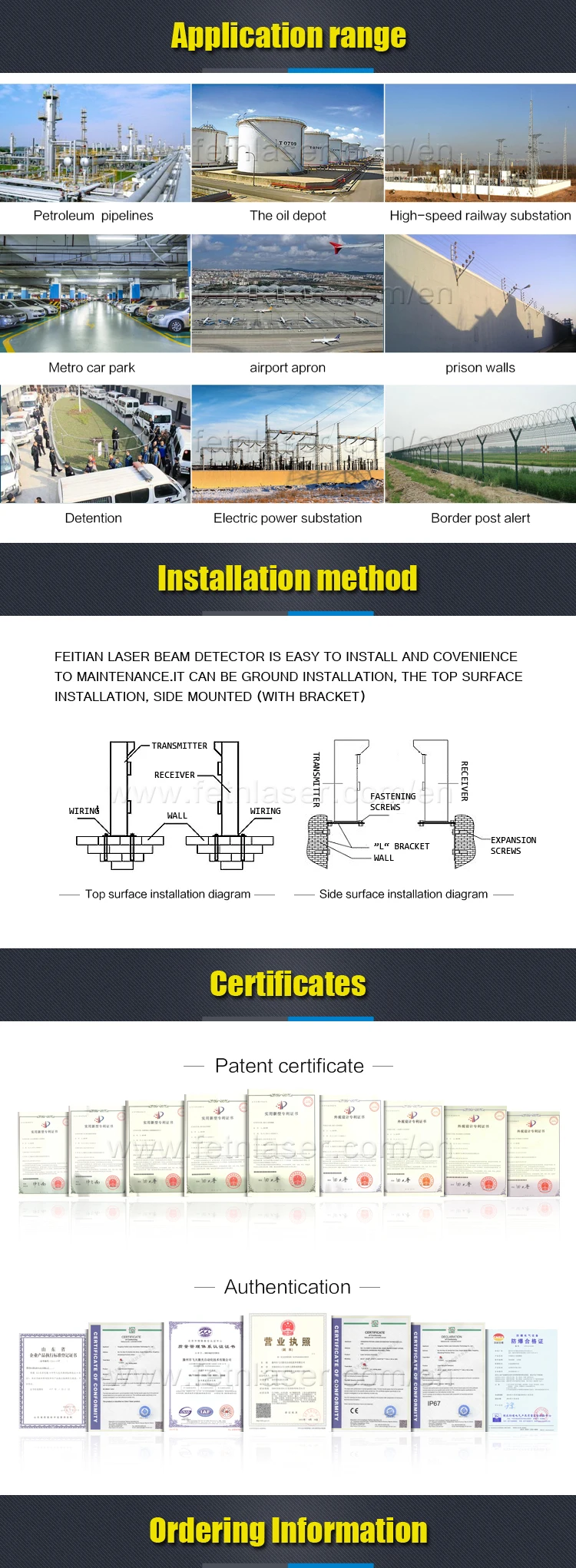

1, The oil depot, Oilfield, Oil and gas pipeline border intrusion prevention



2. Railway track obstruction warning precautions



3. Rail transit, airport runway border protection warning



4, Various important areas of  temporary cordon



5, Highway bridge over-high warning, Road and rail tunnels over-high and  Closed alarm protection
6,The military restricted zones, border intrusion alarm
